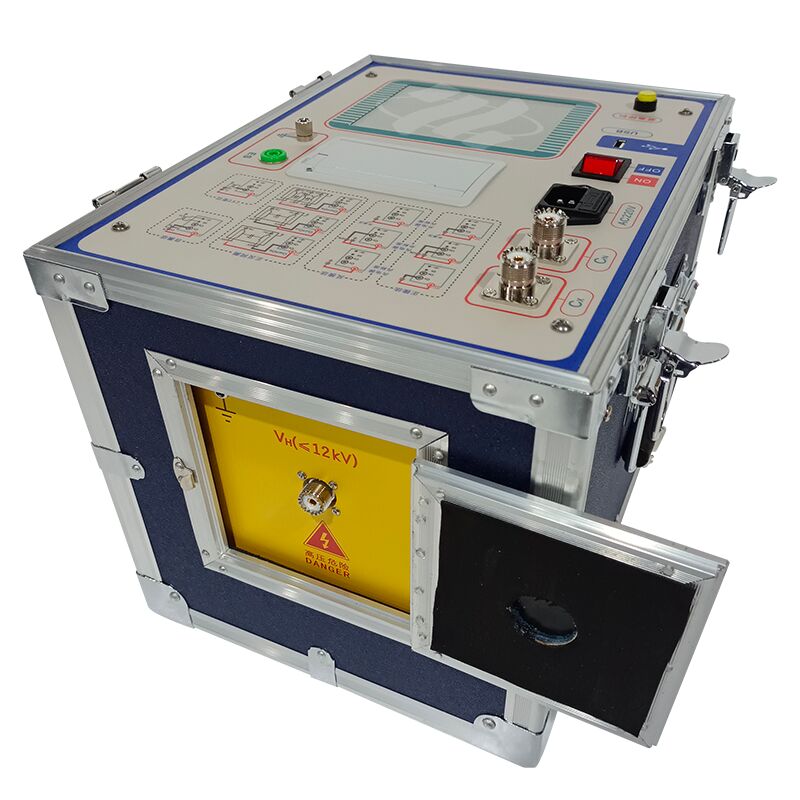

CVT Test 45/55Hz 10kV Dielectric Loss Measurement Upgraded XHJS1000A Tester
CVT Test 45/55Hz 10kV Dielectric Loss Measurement Upgraded XHJS1000A Tester
  • CVT Test 45/55Hz 10kV Dielectric Loss Measurement Upgraded XHJS1000A Tester

CVT Test 45/55Hz 10kV Dielectric Loss Measurement Upgraded XHJS1000A Tester

Productdetails:
Plaats van herkomst: Xi'an, Shaanxi, China
Merknaam: XZH TEST
Certificering: ISO,CE
Modelnummer: XHJS1000B
Detailinformatie
Plaats van herkomst:
Xi'an, Shaanxi, China
Merknaam:
XZH TEST
Certificering:
ISO,CE
Modelnummer:
XHJS1000B
Capaciteitsbereik:
3pF~60nF
Werkende kracht:
AC220V ±10%, 50±1Hz
LV-uitgang:
3~50V spanning, 3~30A stroom
HV-vermogen:
0,5~10kV, 200mA maximale uitgangsstroom
Oplossing:
Diëlektrisch verlies 0,001%
Markeren:

High Light

Markeren:

10kV dielectric loss tester

,

CVT test measurement device

,

AC DC hipot tester

Trading Information
Min. bestelaantal:
1 eenheid
Prijs:
Price Negotiable
Verpakking Details:
houten verpakking
Levertijd:
8-10 dagen
Betalingscondities:
T/T
Levering vermogen:
2000Units/jaar
Productomschrijving
Product Brief

Upgraded from XHJS1000A, XHJS1000B Dielectric Loss Tester adds CVT ratio & phase error measurement. It integrates variable frequency power supply, single-chip microcomputer and electronic tech, realizing auto frequency conversion, A/D conversion and data calculation. 45/55Hz pure sine wave output, auto pressurization, and max 10kV voltage output.

Key Advantages
  • Complex current method for high-precision testing
  • Complies with oil dielectric loss measurement standards
  • One-click CVT self-excitation test for C1/C2 capacitance & dielectric loss
  • IVDDV + variable frequency tech for reverse connection test
  • Multi-protection: Overcurrent, grounding
  • CVT ratio: 10～99999 (±1% error)
  • Phase measurement: 0～359.9° (±0.1° error)
Specs
  • Capacitance range: 3pF～60nF
  • Accuracy: Capacitance ±(1.0%+5pF) | Dielectric loss ±(1%+0.04%) | Frequency ±0.01
  • Resolution: Capacitance 0.001pF | Dielectric loss 0.001%
  • HV power: 0.5～10kV, 200mA max output current
  • LV output: 3～50V voltage, 3～30A current
  • Working power: AC220V ±10%, 50±1Hz
Suitable For
  • Power system (generation/transmission/transformation/distribution)
  • Factories, mines & large manufacturing enterprises
  • Metallurgy, petrochemical, smelting & water treatment
  • Transportation (ports, railways, highways, airports, municipal lamps)
  • Large enterprises & institutions (logistics depts.)
  • Construction industry & property management companies
  • Professional power installation & commissioning companies
