Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions
Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions
  • Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions

Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions

Productdetails:
Plaats van herkomst: Xi'an, Shaanxi, China
Merknaam: XZH TEST
Certificering: ISO,CE
Modelnummer: XHYB-10/100
Detailinformatie
Plaats van herkomst:
Xi'an, Shaanxi, China
Merknaam:
XZH TEST
Certificering:
ISO,CE
Modelnummer:
XHYB-10/100
Markeren:

High Light

Markeren:

Automatic tuning resonance tester

,

Series resonance apparatus with protection

,

AC DC hipot tester

Trading Information
Min. bestelaantal:
1 eenheid
Prijs:
Onderhandelbaar
Verpakking Details:
houten verpakking
Levertijd:
8-10 dagen
Betalingscondities:
T/T
Levering vermogen:
2000Units/jaar
Productomschrijving

Product Overview

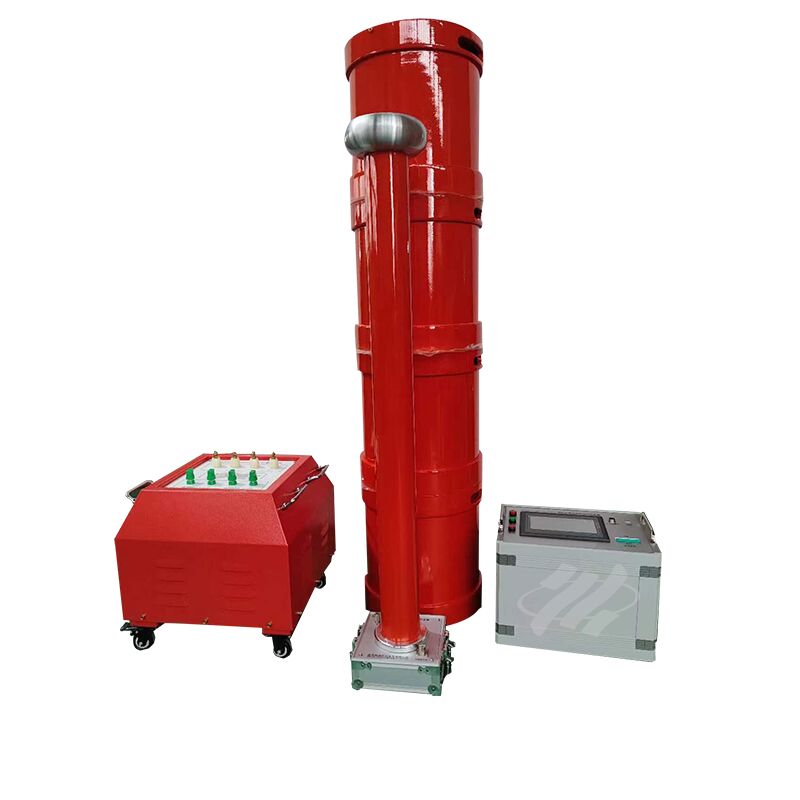

XHBP Series Variable Frequency Resonant Test Device is mainly made up of variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider. By connecting a rectifier silicon stack behind the capacitive voltage divider, the device is capable of performing DC withstand voltage tests for various electrical equipment.

Performance Highlights


  • Reactors of the same voltage class and capacity: smaller volume, lighter weight, easy for transportation and on-site installation.
  • Low temperature rise during rated load operation, enhancing the service life of components.
  • Dry epoxy casting structure ensures high mechanical strength and excellent electrical insulation, suitable for harsh working environments.
  • Variable frequency control power supply features large capacity margin, strong protective system, perfect output waveform and stable working performance.
  • Multiple working modes available, realizing simple and efficient operation.
  • 220V/380V single-phase power supply, convenient for on-site power connection in different regions.

Technical Parameters


  • Rated Output Voltage: ≤500kV (AC RMS)
  • Output Frequency: 20～300Hz
  • Resonant Voltage Waveform: Pure Sine Wave, Distortion <1.0%
  • Test Capacity: ≤1000kVA
  • Continuous Working Time (Full Power): 60min
  • Quality Factor: 30～90
  • Frequency Regulation: Sensitivity 0.1Hz, Instability <0.05%
  • Working Power Supply: 380/220V±15%/50Hz±5%

    Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions 0

Taggen:

VLF Hi-Pot tester for shielded cable,

AC DC withstand voltage tester,

Hi-Pot tester with VLF technology
