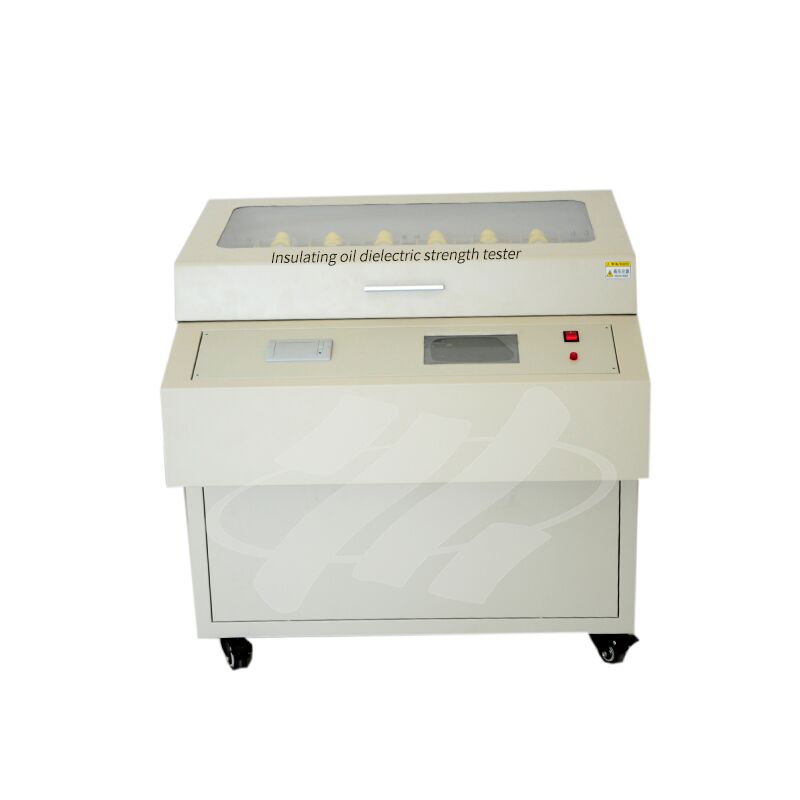

Six Cups Insulating Oil Dielectric Strength Tester

XHYY102L

The Insulating Oil Dielectric Strength Tester is a high-precision fully digital industrial instrument. Developed by our company’s R&D team in strict compliance with relevant standards and specifications for insulating oil testing, this device leverages our core technical strengths and has undergone multiple field tests and years of dedicated refinement before its successful launch. Featuring user-friendly operation and an elegant appearance, it adopts automatic digital microcomputer control, ensuring high measurement accuracy, strong anti-interference performance, and reliable safety in application.

Technical indicators

1. Booster capacity 1.5 kVA

2. Boost speed 2.0 kV/s, 2.5 kV/s, 3.0 kV/s, 3.5 kV/s four optional

                 Error 0.2kV/s

3. Output voltage 0～80 kV (optional)

4. Voltage accuracy ± (2% of reading + 2 digits)

5. Power distortion rate <1%

6. Electrode gap standard 2.5 mm

7. Number of trials 6 times (1-6 times optional)

8. Standing time 5 minutes (1-9 minutes optional)

Main functions and features

1. The instrument is controlled by a large capacity single chip microcomputer, which is stable and reliable;

2. The instrument is equipped with temperature, humidity and clock display functions, and can be customized for infrared oil temperature measurement.

3. The wide range watchdog circuit is set in the instrument to prevent the crash;

4. A variety of standard options. The instrument program is equipped with GB / t507-1986, GB / t507-2002, dl429.9, iec156 and self programming operation, which can adapt to a variety of choices of different users;

5. The oil cup of the instrument is made of special glass and high polymer materials, which are processed finely to prevent oil leakage and corrosion;

6. The unique high-voltage sampling design of the instrument allows the test value to enter the A / D converter directly, avoids the error caused in the analog circuit, and makes the measurement result more accurate;

7. The instrument has over-current, over-voltage, short-circuit and other protection functions, and has strong anti-interference ability and good electromagnetic compatibility;

8. Can switch between Chinese and English at will to meet the needs of any customer;

9. 232 The data transfer；
