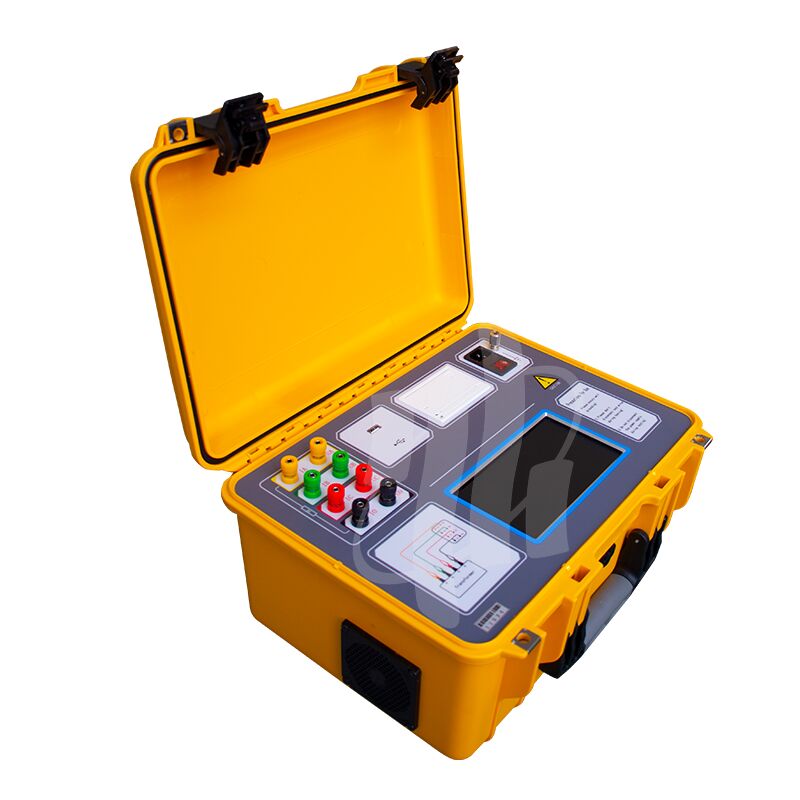

DC Resistance Meter with 7.0 Inches Display

Name: DC Resistance Meter with 7.0 Inches Display
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHZ1320
Price: 4,115.00 USD
Availability: InStock

Productdetails:

Plaats van herkomst:	Xi'an Shaanxi China
Merknaam:	XZH TEST
Certificering:	ISO CE
Modelnummer:	XHZ1320

Detailinformatie

Plaats van herkomst:

Xi'an Shaanxi China

Merknaam:

XZH TEST

Certificering:

ISO CE

Modelnummer:

XHZ1320

Markeren:

High Light

Markeren:

7.0 inches Display DC Resistance Meter

DC Resistance Measurement Transformer Tester

Design Winding Resistance Tester

Trading Information

Min. bestelaantal:

1set

Verpakking Details:

houten verpakking

Levertijd:

5-8 WERKDAGEN

Betalingscondities:

T/T

Levering vermogen:

3000 eenheden/jaar

Productomschrijving

XHZ1320

Description

Transformers are the heart of power systems, and their sustained reliable performance is critical to overall grid stability and reliability.

DC resistance testing is essential for transformer manufacturing—covering semi-finished/finished product factory checks, installation handover tests, and power department preventive testing. It detects coil defects (material issues, welding faults, loose connections, missing strands, wire breaks) and post-operation hidden risks efficiently. Built on our company’s technical expertise to meet the need for rapid DC resistance measurement, our transformer DC resistance tester is a new-generation fast tester with integrated three-phase testing (Yn, Y, △) and demagnetization. It is the perfect tool for measuring DC resistance in large power transformers. Featuring a true-color high-resolution industrial screen, full touch operation, and Chinese menu prompts, it offers intuitive operation, fast testing, high precision, and a wide measurement range.

Panel introduction

DC Resistance Meter with 7.0 Inches Display 0

1. High voltage terminal

Connect to transformer high voltage side bushing .

2. Test wiring diagram

3. Capacitive touch screen.

Display size 7.0 inches; resolution 1024×600.

4. Notes

5. Ground terminal

The instrument must be reliably grounded. There may be paint or rust on the on-site grounding point, which must be removed.

6. Power on/off key

Turn on the power switch for about 2 seconds to start up.

7. Printer

Print test results.

8. USB interface

An external USB flash drive is used to store test data; please use a USB flash drive in FAT or FAT32 format; during the storage process, it is strictly prohibited to remove the USB flash drive.

DC Resistance Meter with 7.0 Inches Display 1
