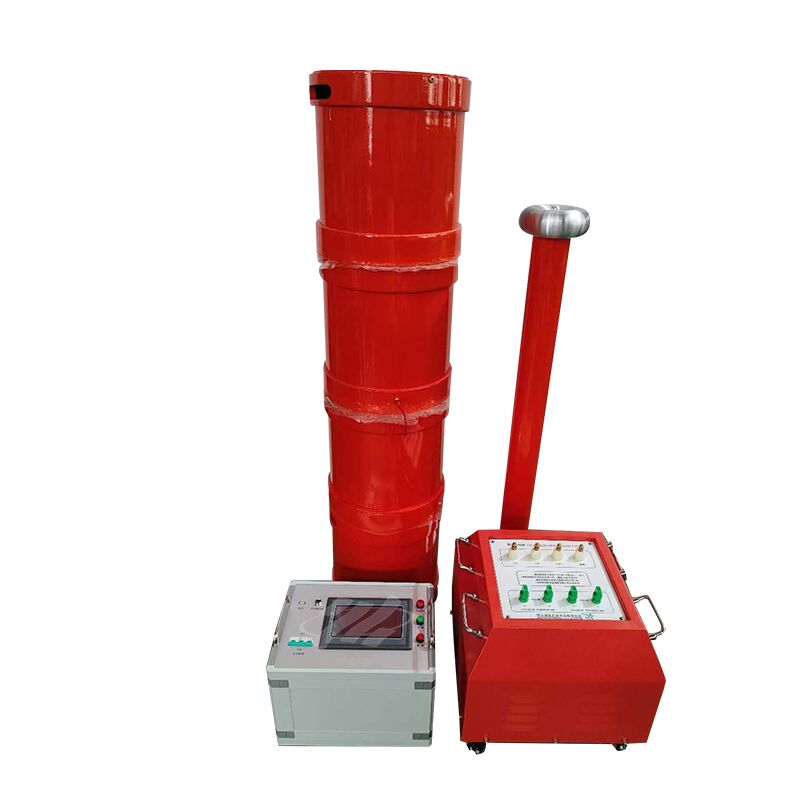

Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System
Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System
  • Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System

Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System

Productdetails:
Plaats van herkomst: Xi'an, Shaanxi, China
Merknaam: XZH TEST
Certificering: ISO,CE
Modelnummer: XHBP-135/108
Detailinformatie
Plaats van herkomst:
Xi'an, Shaanxi, China
Merknaam:
XZH TEST
Certificering:
ISO,CE
Modelnummer:
XHBP-135/108
Nominale uitgangsspanning:
Maximaal 500 kV (AC RMS)
Uitgangsfrequentie:
20 tot 300 Hz
Resonerende voltagegolfvorm:
Zuivere sinusgolf, vervormingspercentage <1,0%
Testcapaciteit:
Maximaal 1000 kVA
Continu gebruik op vol vermogen:
60 minuten
Markeren:

High Light

Markeren:

HV insulation test apparatus

,

Resonance experimental power tester

,

AC DC hipot test equipment

Trading Information
Min. bestelaantal:
1 eenheid
Prijs:
Onderhandelbaar
Verpakking Details:
houten verpakking
Levertijd:
8-10 dagen
Betalingscondities:
T/T
Levering vermogen:
2000Units/jaar
Productomschrijving
Product Overview

XHBP series variable frequency resonant test device comprises variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider as main parts. A rectifier silicon stack connected after the capacitive voltage divider enables DC withstand voltage testing of equipment.

Performance Features
  • Compact and lightweight reactors for the same voltage and capacity rating.
  • Low temperature rise under rated load.
  • Dry-type epoxy casting for high mechanical strength and good electrical insulation.
  • Variable frequency control power supply with large capacity margin, powerful protection, high-quality output waveform and stable performance.
  • Easy operation with multiple working modes.
  • Convenient on-site power access via 220V or 380V single-phase power.
Technical Parameters
  • Rated output voltage: 500kV max (AC RMS)
  • Output frequency: 20 to 300Hz
  • Resonant voltage waveform: Pure sine wave, distortion rate <1.0%
  • Test capacity: 1000kVA max
  • Full-power continuous operation: 60 minutes
  • Quality factor: 30 to 90
  • Frequency regulation: 0.1Hz sensitivity, <0.05% instability
  • Working power: 380/220V±15%, 50Hz±5%

    Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System 0
