CE Certified Series Resonance Experimental Apparatus | Customizable for HV Test

Name: CE Certified Series Resonance Experimental Apparatus | Customizable for HV Test
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHBP-135/108
Price: 7,970.00 USD
Availability: InStock

Productdetails:

Plaats van herkomst:	Xi'an, Shaanxi, China
Merknaam:	XZH TEST
Certificering:	ISO,CE
Modelnummer:	XHBP-135/108

Detailinformatie

Plaats van herkomst:

Xi'an, Shaanxi, China

Merknaam:

XZH TEST

Certificering:

ISO,CE

Modelnummer:

XHBP-135/108

Nominale uitgangsspanning:

500 kV en lager (AC-wortelgemiddelde kwadratische waarde)

Werkende stroomvoorziening:

380/220V AC±15%, 50Hz±5%

Prestaties van frequentieregeling:

Gevoeligheid 0,1 Hz, instabiliteitsfout <0,05%

Kwaliteitsfactor (Q):

30~90

Continue werkduur:

60 minuten bij volledige uitgangsvermogenstatus

Nominale testcapaciteit:

1000kVA en lager

Markeren:

High Light

Markeren:

CE certified resonance test apparatus

Customizable HV resonance tester

AC DC hipot resonance equipment

Trading Information

Min. bestelaantal:

1 eenheid

Prijs:

Onderhandelbaar

Verpakking Details:

houten verpakking

Levertijd:

8-10 dagen

Betalingscondities:

T/T

Levering vermogen:

2000 eenheid/jaar

Productomschrijving

Product Description

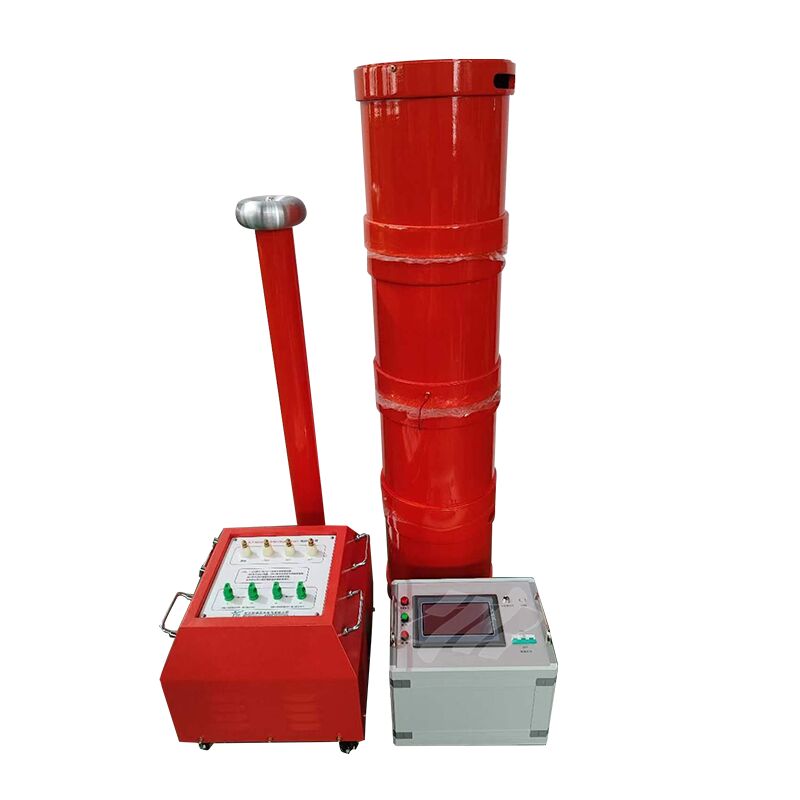

XHBP series variable frequency resonant test device is a modular testing equipment, the main components of which include variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider. For the implementation of DC withstand voltage test on tested equipment, a rectifier silicon stack shall be connected to the output terminal of the capacitive voltage divider.

Performance Characteristics

For reactors with identical voltage rating and nominal capacity, the physical dimension is compact and the net weight is reduced compared with conventional models.
Temperature rise value is controlled at a low level when the device operates under rated load condition.
The reactor is manufactured with dry-type epoxy casting technology, which ensures high mechanical strength and meets the requirements of high-level electrical insulation.
The variable frequency control power supply is designed with large capacity margin, complete protection functions, low-distortion output waveform and high operational stability.
The device is configured with multiple operating modes, which simplifies the test operation process for operators.
The power supply input is 220V or 380V single-phase AC, which is compatible with most on-site power supply conditions for easy power taking.

Technical Specifications

Rated output voltage: 500kV and lower (AC root mean square value)
Output frequency: 20～300Hz (adjustable)
Resonant voltage waveform: Pure sine wave, waveform distortion factor ≤1.0%
Nominal test capacity: 1000kVA and lower
Continuous working duration: 60 minutes under full power output status
Quality factor (Q): 30～90
Frequency regulation performance: Sensitivity 0.1Hz, instability error <0.05%
Working power supply: 380/220V AC±15%, 50Hz±5%
