Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision
Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision
  • Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision

Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision

Productdetails:
Plaats van herkomst: Xi'an, Shaanxi, China
Merknaam: XZH TEST
Certificering: ISO,CE
Modelnummer: XHBP-44/44
Detailinformatie
Plaats van herkomst:
Xi'an, Shaanxi, China
Merknaam:
XZH TEST
Certificering:
ISO,CE
Modelnummer:
XHBP-44/44
Brede voltageinput:
380/220V±15%/50Hz±5%
Precisie frequentieregeling:
0,1 Hz gevoeligheid, <0,05% instabiliteit
Kwaliteitsfactor bereik:
30~90
Continu gebruik op vol vermogen:
60 minuten
Maximale testcapaciteit:
1000 kVA
Resonerende voltagegolfvorm:
Zuivere sinusgolf, golfvormvervorming <1,0%
Markeren:

High Light

Markeren:

lightweight resonance experimental apparatus

,

low power consumption hipot tester

,

high precision AC DC tester

Trading Information
Min. bestelaantal:
1 eenheid
Prijs:
Onderhandelbaar
Verpakking Details:
houten verpakking
Levertijd:
8-10 dagen
Betalingscondities:
T/T
Levering vermogen:
2000Units/jaar
Productomschrijving
Product Introduction

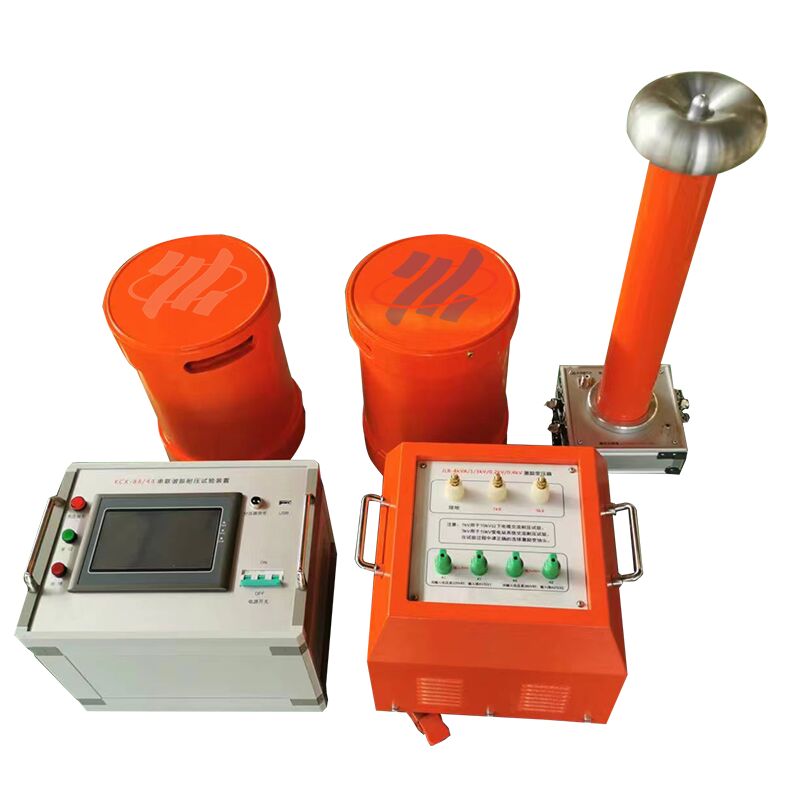

The XHBP series variable frequency resonant test device is an integrated testing solution consisting of core components: variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider. Its flexible design allows the connection of a rectifier silicon stack post capacitive voltage divider, enabling seamless DC withstand voltage testing for various equipment.

Outstanding Performance Traits
  • Space-saving & portable reactors: Same voltage class and capacity with reduced volume and weight for easy handling.
  • Low heat generation under rated load, ensuring long-term stable operation.
  • Advanced dry-type epoxy casting process delivers exceptional mechanical strength and reliable electrical insulation.
  • High-performance VF control power supply: Abundant capacity margin, comprehensive protection functions, perfect sine wave output and consistent stability.
  • User-friendly operation with multiple customizable working modes to fit diverse testing demands.
  • Convenient on-site power supply via universal 220V or 380V single-phase power input.
Core Technical Parameters
  • Rated output voltage: Up to 500kV (AC RMS)
  • Output frequency range: 20 to 300Hz
  • Resonant voltage waveform: Pure sine wave, waveform distortion <1.0%
  • Max test capacity: 1000kVA
  • Full-power continuous operation: 60 minutes
  • Quality factor range: 30～90
  • Precision frequency regulation: 0.1Hz sensitivity, <0.05% instability
  • Wide voltage input: 380/220V±15%/50Hz±5%

Taggen:

VLF Hi-Pot tester for shielded cable,

AC DC withstand voltage tester,

Hi-Pot tester with VLF technology
