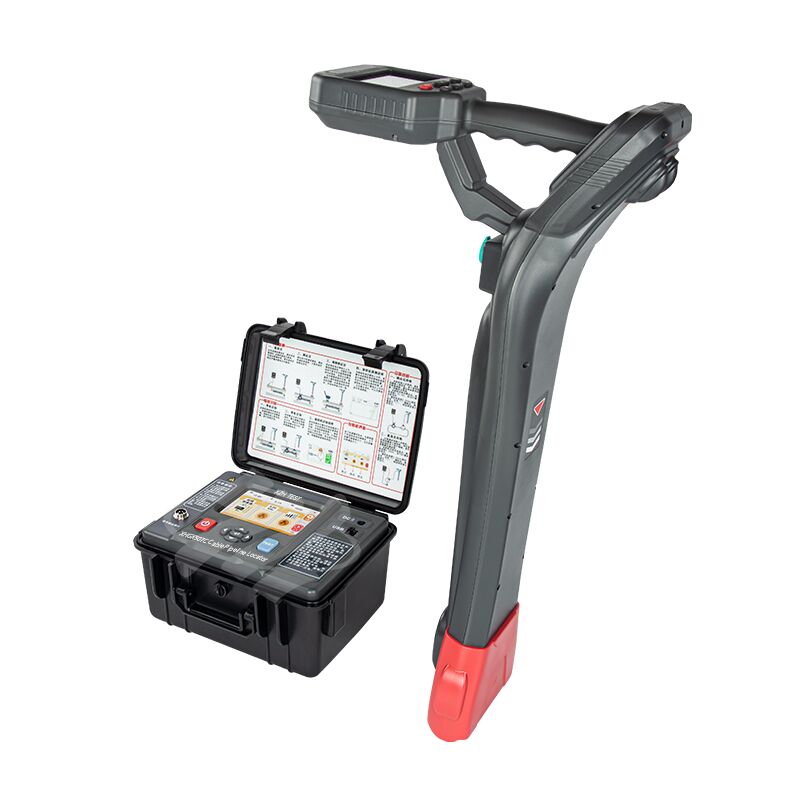

Precise Positioning Underground Cable Detector for Accurate Fault Location

Name: Precise Positioning Underground Cable Detector for Accurate Fault Location
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHGX507C
Price: 1,050.00 USD
Availability: InStock

Productdetails:

Plaats van herkomst:	Xi'an
Merknaam:	XZH TEST
Certificering:	CE
Modelnummer:	XHGX507C

Detailinformatie

Plaats van herkomst:

Xi'an

Merknaam:

XZH TEST

Certificering:

Modelnummer:

XHGX507C

Markeren:

High Light

Markeren:

Precise Positioning Underground Cable Detector

Distance Measurement Cable Fault Locator

Digital Display Cable Tester

Trading Information

Min. bestelaantal:

1set

Verpakking Details:

Houten verpakking

Levertijd:

5-8 werkdagen

Betalingscondities:

T/T

Levering vermogen:

3000 eenheden/jaar

Productomschrijving

XHGX507C

The Precise Positioning Underground Cable Detector provides accurate location detection for buried cables, ensuring safe excavation and maintenance operations.

The instrument uses a variety of filtering technologies, has anti-interference capabilities, can accurately locate and measure depth, and is suitable for the detection and patrol of various underground metal pipelines, pipeline management and maintenance, municipal planning and construction, and pipeline detection in power supply and other departments.

Features

1. Multiple detection modes: classic positioning mode, wire cruise mode, signal distortion measurement mode;

2. Classic positioning mode: compass, direction and signal amplitude display, intuitive display of the left and right directions of the pipeline.

3. Wire cruise mode: 360° all-round pipeline path indication, continuous display of depth, current and relative position of pipeline.

The interface is simple and intuitive, and can be operated without experience

4. Signal distortion measurement mode: simultaneous display of peak and trough waveforms. In the distortion-free site, the peak and trough positions should be consistent, and the site shape should be symmetrical relative to the center line.

Transmitter clamp: suitable for coupling method. The transmitting clamp couples the signal emitted by the transmitter to the target cable. The jaw size is Φ125mm. The transmitting clamp is directional, and the transmitting signal flows in from the direction indicated by the arrow on the transmitting clamp.

Transmitter Specifications

Function	Multiple frequency signal transmission modes
Power	10.8V large capacity rechargeable lithium battery
Output method	Direct connection method, coupling method, induction method
Output frequency	640Hz,1.28kHz,2.56kHz,3.20kHz,4.09kHz,8.19kHz,10.2kHz,32.7kHz, 65.6kHz,81.9kHz,197kHz
Output Mode	Automatic identification, automatic identification according to different accessories

Precise Positioning Underground Cable Detector for Accurate Fault Location 0

Precise Positioning Underground Cable Detector for Accurate Fault Location 1
