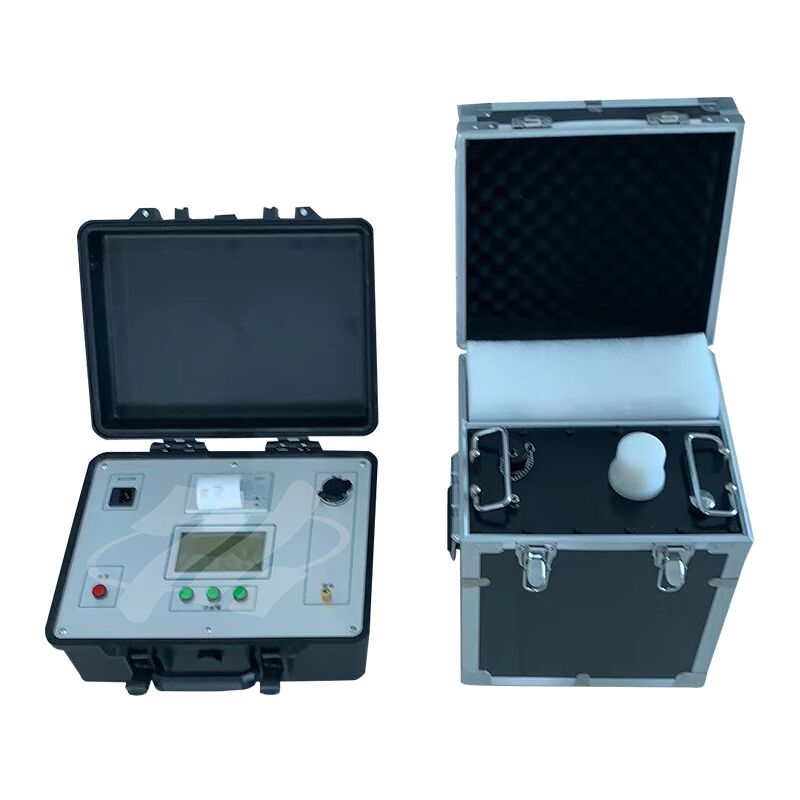

Industrial VLF AC DC Hipot Tester, Integrated Tan Delta Measuring Instrument
Industrial VLF AC DC Hipot Tester, Integrated Tan Delta Measuring Instrument
  • Industrial VLF AC DC Hipot Tester, Integrated Tan Delta Measuring Instrument

Industrial VLF AC DC Hipot Tester, Integrated Tan Delta Measuring Instrument

Productdetails:
Plaats van herkomst: Xi'an, Shaanxi, China
Merknaam: XZH TEST
Certificering: ISO,CE
Modelnummer: XHDP -serie
Detailinformatie
Plaats van herkomst:
Xi'an, Shaanxi, China
Merknaam:
XZH TEST
Certificering:
ISO,CE
Modelnummer:
XHDP -serie
Nominaal vermogen:
30kv/50kv/80kv
Meetprecisie:
3%
Optionele uitgangsfrequenties:
0.1Hz, 0.05Hz, 0.02Hz
Maximale belasting:
1,1 μF (0,1 Hz), 2,2 μF (0,05 Hz), 5,5 μF (0,02 Hz)
Afwijking van de piekspanning (positief/negatief):
≤3%
Het tarief van de golfvormvervorming:
≤5%
Markeren:

High Light

Markeren:

Industrial VLF Hipot Tester

,

AC DC Hipot Tester with Tan Delta

,

Integrated Tan Delta Measuring Instrument

Trading Information
Min. bestelaantal:
1 eenheid
Prijs:
Onderhandelbaar
Verpakking Details:
houten verpakking
Levertijd:
8-10 dagen
Betalingscondities:
T/T
Levering vermogen:
2000Units/jaar
Productomschrijving
Product Introduction

Designed with advanced digital frequency conversion and microcomputer control technology, the XHDP ultra-low frequency high-voltage equipment achieves full automation in boosting, step-down, data measurement and safety protection. With small overall dimension and light weight, it is equipped with a high-definition LCD screen for intuitive viewing. It can visually show output waveforms and generate printable test reports for on-site testing.

Key Advantages
  • All parameters including current, voltage and waveforms are collected directly at the high-voltage terminal.
  • Fast over-current and over-voltage protection, with operation reaction time less than 20 milliseconds.
  • Built-in high-low voltage closed-loop negative feedback design, ensuring stable output without capacitive voltage rise.
Specification Data
  • Rated Output: 30kV/50kV/80kV, Measurement Precision: 3%
  • Optional Output Frequencies: 0.1Hz, 0.05Hz, 0.02Hz
  • Maximum Load: 1.1μF (0.1Hz), 2.2μF (0.05Hz), 5.5μF (0.02Hz)
  • Peak Voltage Deviation (Positive/Negative): ≤3%
  • Waveform Distortion Rate: ≤5%
  • Working Conditions: Ambient Temperature -10℃ to +40℃, Relative Humidity ≤85%
  • Input Power: AC 220V±5%, 50Hz

    Industrial VLF AC DC Hipot Tester, Integrated Tan Delta Measuring Instrument 0
