SF6 dew point meter for circuit breaker analysis

Name: SF6 dew point meter for circuit breaker analysis
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHLD305
Price: 7,970.00 USD
Availability: InStock

Productdetails:

Plaats van herkomst:	Xi'an Shaanxi China
Merknaam:	XZH TEST
Certificering:	ISO CE
Modelnummer:	XHLD305

Detailinformatie

Plaats van herkomst:

Xi'an Shaanxi China

Merknaam:

XZH TEST

Certificering:

ISO CE

Modelnummer:

XHLD305

Markeren:

High Light

Markeren:

Sulfur hexafluoride dew point meter

Dew point measurement SF6 dew point meter

Circuit breaker analysis dew point meter

Trading Information

Min. bestelaantal:

1SET

Verpakking Details:

houten verpakking

Levertijd:

5-8 werkdagen

Betalingscondities:

T/T

Levering vermogen:

3000 eenheden/jaar

Productomschrijving

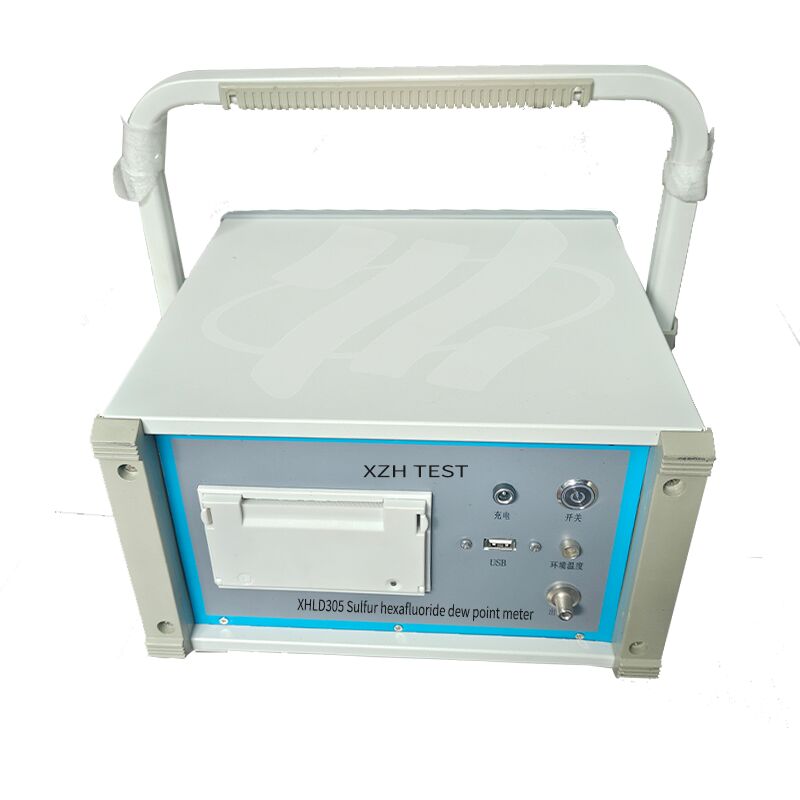

This instrument is designed to measure the dew point parameters of SF₆ gas in high-voltage circuit breakers and GIS combined electrical appliances. A color LCD screen directly displays key data including dew point, micro moisture (ppm), ambient temperature, ambient humidity, as well as time and date.

SF6 dew point meter for circuit breaker analysis 0

Performance Features
★ Self-calibration: The sensor probe can automatically calibrate the zero point;
★ Fast and gas-saving: Each SF6 gas dew point measurement takes approximately 5 minutes;
★ Self-locking connector: Uses original German imported self-locking connectors, ensuring no gas leakage;
★ Data storage: Can store 200 sets of test data;
★ Curve function: Large screen displays the dew point measurement process as a curve;
★ RS232 interface: Can be connected to a PC serial port for data transmission;
★ Built-in power supply: Built-in 4Ah rechargeable lithium battery, providing 10 hours of continuous operation.

Technical Parameters
☆ Measurement range: -80 ℃～+20 ℃
☆ Measurement accuracy: ±1.0℃ (-60℃～20℃) / ±2℃ (-80℃～-60℃)
☆ Response time: 63% in 10 seconds, 90% in 240 seconds / 63% in 5 seconds, 90% in 45 seconds
☆ Ambient temperature: -40℃～+60℃ Ambient humidity: 0～100％ RH
