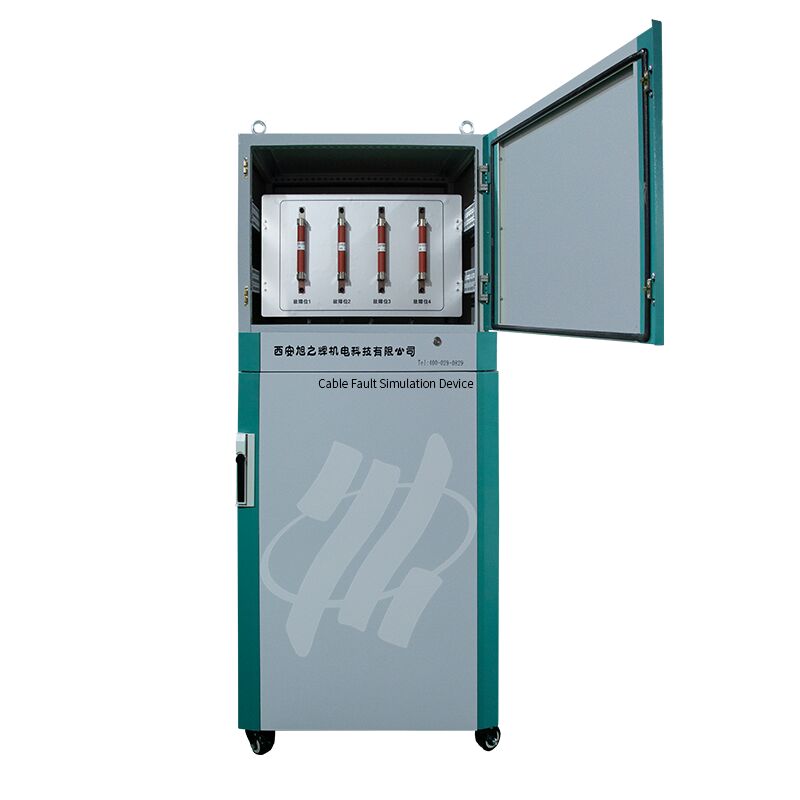

Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display

Name: Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHFZ510-B2
Price: 1,050.00 USD
Availability: InStock

Productdetails:

Plaats van herkomst:	Xi'an Shaanxi
Merknaam:	XZH TEST
Certificering:	ISO
Modelnummer:	XHFZ510-B2

Detailinformatie

Plaats van herkomst:

Xi'an Shaanxi

Merknaam:

XZH TEST

Certificering:

ISO

Modelnummer:

XHFZ510-B2

Brug verhouding:

1/50, 1/20, 1/10, 1/5, 1/4, 1/2, nauwkeurigheid: ±0,25%

Maximaal te meten weerstand:

10kΩ

Maximaal te meten spanning:

5 kVDC

Markeren:

High Light

Markeren:

Simulation Device Cable Fault Locator

Acoustic-Magnetic Synchronization Cable Fault Tester

Digital Display Cable Fault Simulation Device

Trading Information

Min. bestelaantal:

1set

Verpakking Details:

Houten verpakking

Levertijd:

5-8 werkdagen

Betalingscondities:

T/T

Levering vermogen:

3000 eenheden/jaar

Productomschrijving

XHFZ510-B2

Product Overview

As urbanization speeds up, growing electricity demand drives the shift from overhead lines to cables. Training cable fault detection staff remains a long-standing issue. Our independently developed electrical test simulation training system—distilled from decades of power cable experience—simulates all cable faults, ensuring effective training.

Application

The Electrical Testing Simulation Training System is primarily used for training power cable testing personnel in various industries. The main industries involved include:
Power Industry: Various power plants, substations, power supply bureaus, etc.
Manufacturing Industry: Power cable manufacturers, cable fault detector manufacturers, etc.
Smelting Industry: Self-owned power plants, power plants, etc.
Education Industry: Laboratories, training bases, etc.
Research Institutes: Laboratories, training bases, etc.
Service Industry: Property management, service companies, logistics departments, etc.

Panel Introduction

Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display 0

Test Ends:

1) Main Insulation 1: Cable core end at the T-joint;

2) Test Ground 1: Cable shield end at the T-joint;

3) Main Insulation 2: Cable core end;

4) Test Ground 2: Cable shield end;

5) Grounding Post: Instrument grounding point, for safety protection.

Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display 1
