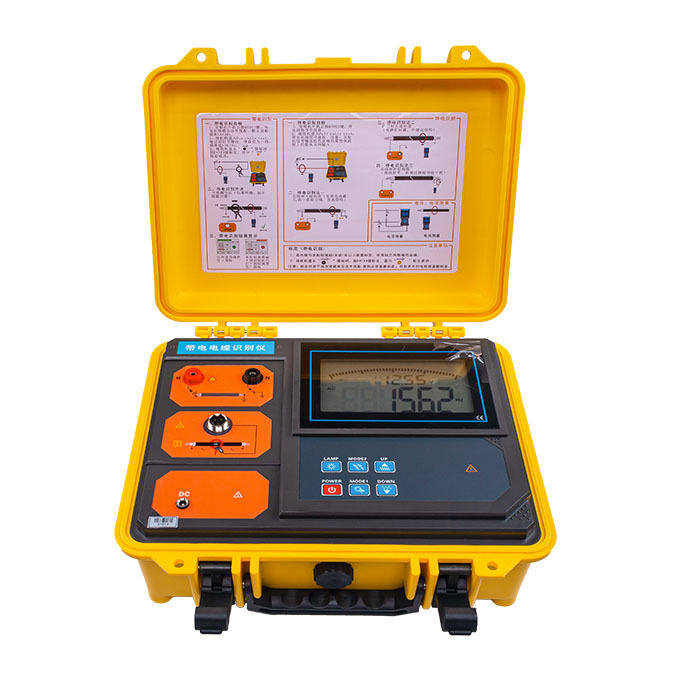

Xhsb505ds Factory Supplier Live Cable Fault Identifier Testing Equipment

Name: Xhsb505ds Factory Supplier Live Cable Fault Identifier Testing Equipment
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHSB505DS
Price: 1,050.00 USD
Availability: InStock

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	XZH Test
Certificering:	CE/ISO
Modelnummer:	XHSB505DS

Detailinformatie

Plaats van herkomst:

CHINA

Merknaam:

XZH Test

Certificering:

CE/ISO

Modelnummer:

XHSB505DS

Markeren:

High Light

Markeren:

cable fault locator testing equipment

live cable fault identifier

factory supplier cable locator

Trading Information

Min. bestelaantal:

1 eenheid

Verpakking Details:

Houten doos

Levertijd:

5-8Work Days

Betalingscondities:

T/t

Levering vermogen:

2000 eenheid/jaar

Productomschrijving

XHSB505DS

Model NO.

XHSB505DS

Certification

CE, ISO

Transport Package

Wooden

Specification

420mm× 250mm× 340mm

Trademark

XZH TEST

Origin

China Xi'an

HS Code

9031809090

Production Capacity

100 Pieces /Year

Not only does this product provide the essential functions of identifying live and de - energized cables, but it also conducts precise AC current and voltage tests. It consists of a transmitter that sends out the signals, a transmitting current clamp that ensures accurate signal delivery, a receiver that captures and processes the data, and a receiving flexible current clamp that enhances usability. Importantly, the test cable voltage range covers AC 0.00V to 600V (50Hz/60Hz), the measurable AC current range spans from AC 0.00A to 5000A (50Hz/60Hz), and the measurable current frequency is between 45Hz and 70Hz.

Main Function

Handheld type receiver has 3.5inch color LCD Screen
Transmitter adopts integrated special toolbox design, Good wear resistance, heat resistance and insulation performance.
Large-diameter clamp size Φ120mm
Multiple frequency to identify energy cable625Hz,1562Hz,2500Hz,10kHz
11.1V large-capacity rechargeable lithium battery, fully charged and continuously working for about 8 hours
De-energy cable identifying distance up to 10km, energy cable indentifying distance up to 5km
International standard IEC61010-1 CAT 600V,IEC61010-031,IEC61326. Pollution degree 2

Test range	De-energy cable identifying: The coil can detect pulse signals with a loop resistance of 0Ω~10kΩ; when the detection loop resistance is 10kΩ, the transmitter battery must be guaranteed to be above 11V (generally, the cable length can reach 0-10 kilometers, mainly by grounding resistance and wire Cable resistance)
Test range	Energy cable identifying: The coil can detect pulse signals with a loop resistance of 0Ω~200Ω; when the detection loop resistance is 200Ω, the transmitter battery must be guaranteed to be above 11V (generally it can reach a cable length of 0-5 kilometers, mainly by grounding resistance and wire Cable resistance)
Range	AC Voltage: 0.00V~600V(50Hz/60Hz)
	AC Current: 0.00A~5000A(50Hz/60Hz)
	Current frq: 45Hz~70Hz
Accuracy	AC Voltage :±2%±3dgt
	AC Current :±2%±3dgt
	Current frq :±2%±3dgt
